Thyristor control flash circuit

Published:2011/8/28 21:37:00 Author:Jessie | Keyword: Thyristor, flash | From:SeekIC

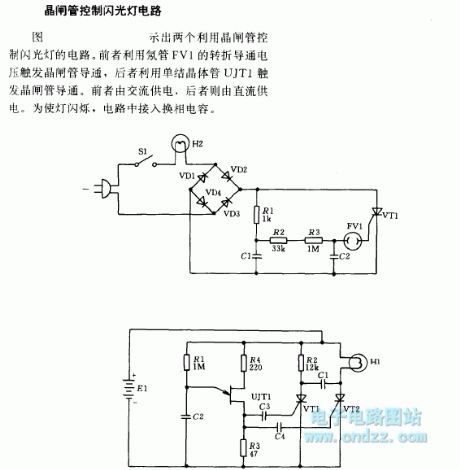

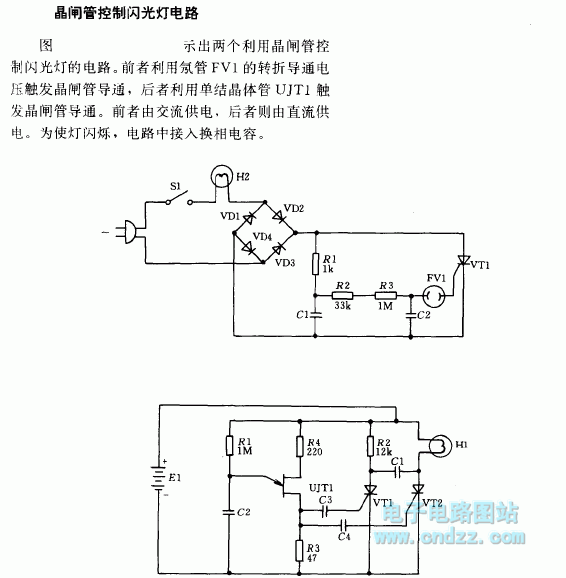

The figure shows two flash circuits controlled by thyristor. The former uses neon tube FV1 to connect the voltage trigger thyristor, the latter uses UJT1 to connect the trigger thyristor. The formeris AC power supply,the latter isDC power supply. In order to make lamp flash, it is added commutation capacitor to circuit.
