Time_delay_circuit_using_a_UJT_and_two_SCRs

Published:2009/7/21 22:41:00 Author:Jessie | From:SeekIC

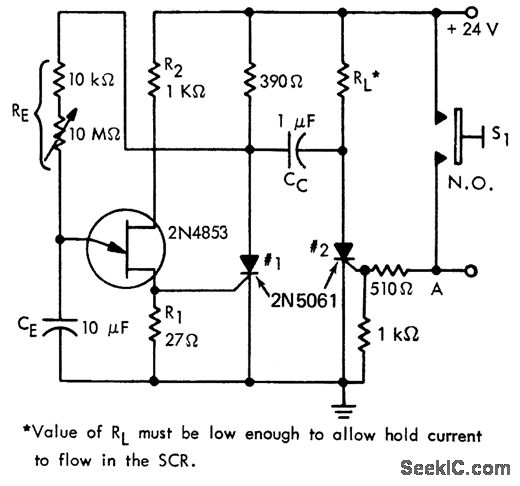

Time delay circuit using a UJT and two SCRs. Time delay is determined by setting of 10M pot from less than a second to approximately 2.5 minutes (courtesy Motorola Semiconductor Products Inc.).
