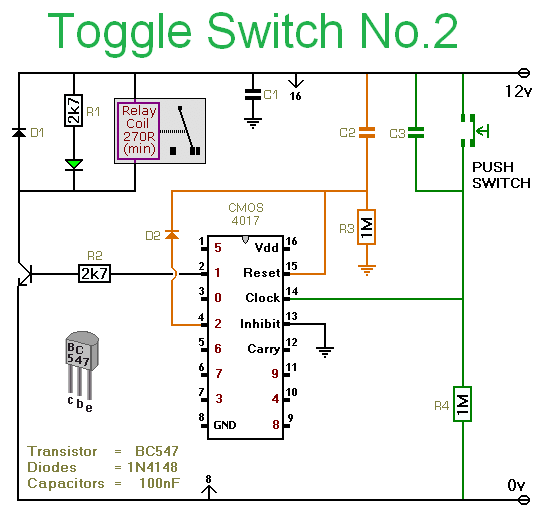

Toggle Switch No. 2

Published:2012/12/3 0:13:00 Author:muriel | Keyword: Toggle Switch | From:SeekIC

Pushing the button once will energize the relay. Pushing the same button a second time will de-energize the relay. Any simple momentary action push-to-make switch will do.
