Touch delay light circuit with digital circuit (1)

Published:2011/4/19 4:00:00 Author:Nicole | Keyword: delay light, digital circuit | From:SeekIC

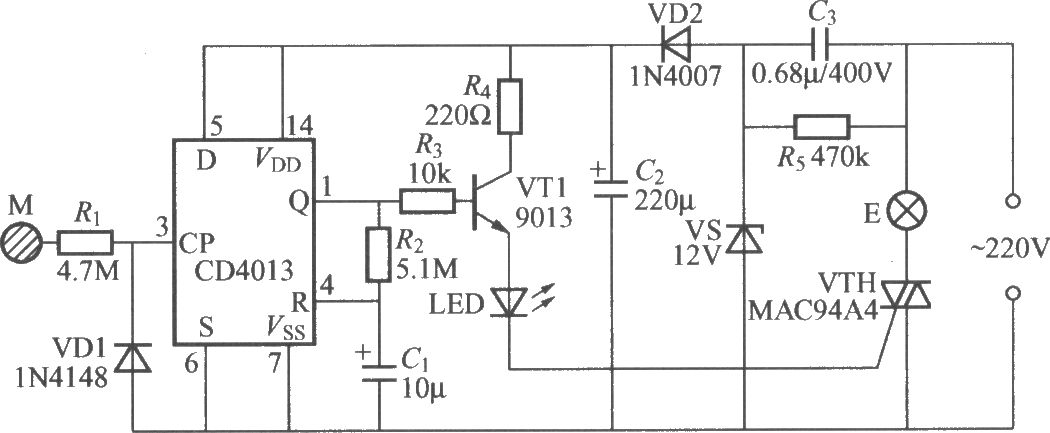

The figure is as shown, it is a touch delay light with CD4013 digital integrated circuit, the circuit consists of C3 depressurization, VD2 rectifier and VS steady voltage, after connecting to power supply, two sides of C2 can output 12V stable DC voltage to supply to the whole switch power utilization.
