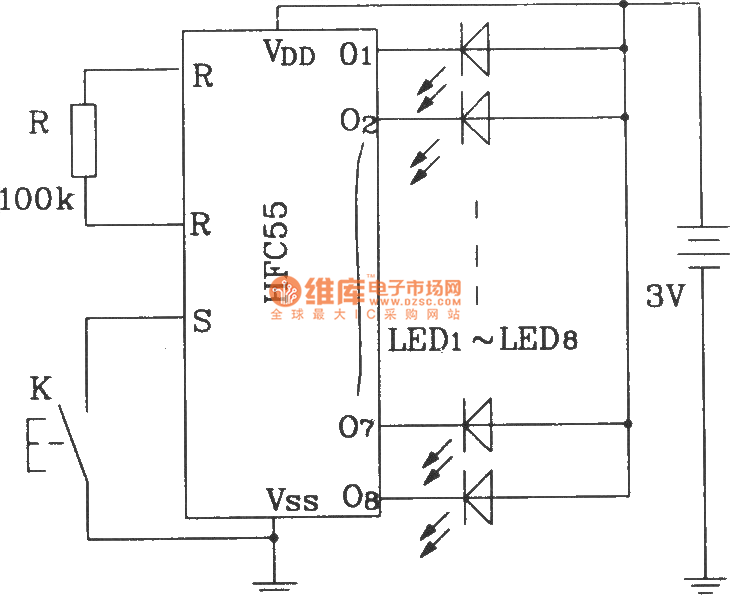

Typical application circuit of HFC55 audio control IC

Published:2011/8/8 20:43:00 Author:Ecco | Keyword: Typical application circuit , audio control IC | From:SeekIC

This start-stop control end S of the device is carried by high level, the external end is connected to a pairof groundswitch K. Each time to press it, the circuit can complete the start or stop conversion.
