UNIVERSAL_MOTOR_SPEED_CONTROL

Published:2009/6/26 3:46:00 Author:Jessie | From:SeekIC

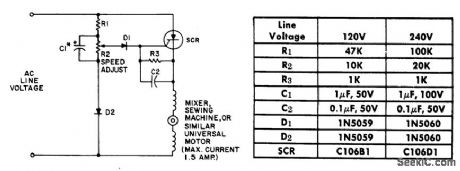

The resistor capacitor network R1-R2-C1 provides a ramop-type reference voltage superimposed on top of a dc volatage adjustable with the speed-setting potentiometer R2.This reference voltage appearing at the wiper of R2 is balanced against the residual counter emf of the motor through the SCR gate.As the motor slows down due to heavy loading,its couter emf falls,and the reference ramp triggers the SCR earlier in the ac cycle.More voltage is thereby applied to the motor causing it to pick up speed again.Performance with the C106 SCR is particularly good because the low trigger current requirements of this device allow use of a flat top reference voltage, which provides good feedback gain and close speed regulation.
