Vice control music outlet circuit using SL517A

Published:2012/9/12 22:29:00 Author:Ecco | Keyword: Vice control, music outlet | From:SeekIC

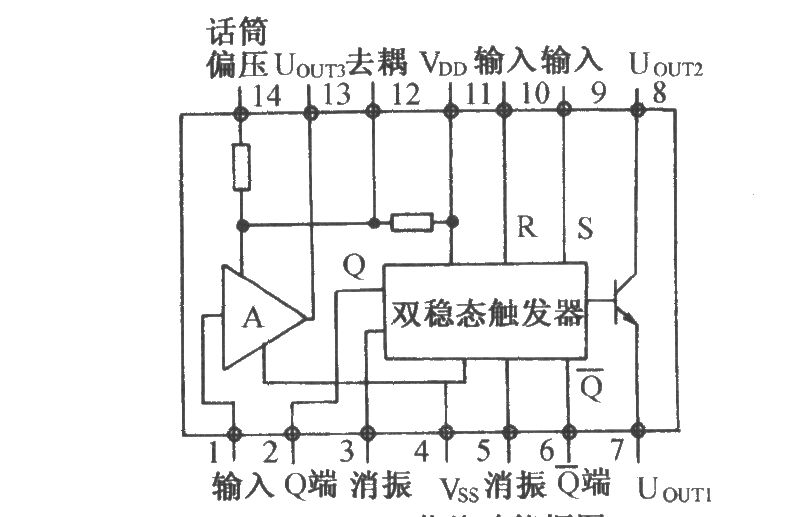

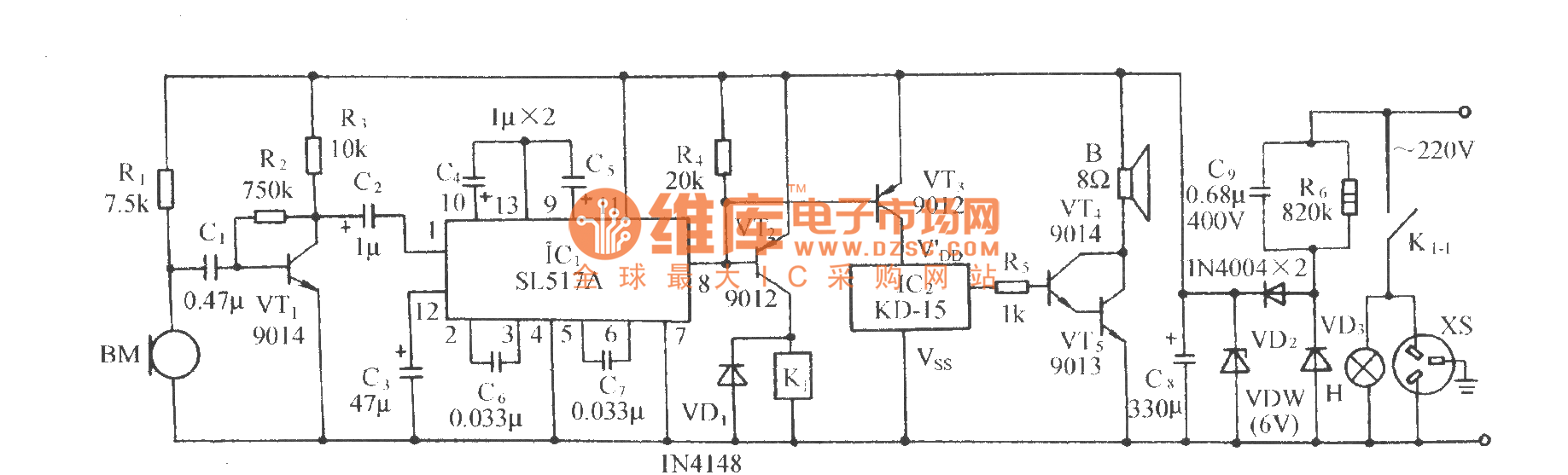

The circuit is shown in Figure, and it is composed of acoustic sensor, voice control IC, relay control circuit, song voice circuit and AC buck rectifier circuit. Voice control IC uses SL517A which contains high-gain amplifier, bistable flip-flop and buffer output level, and it has two packages of dual in-line and black ointment. Its internal functional block diagram is shown as below.
