Voice-activated music outlet circuit using NJM2072D

Published:2012/9/12 2:16:00 Author:Ecco | Keyword: Voice-activated , music outlet | From:SeekIC

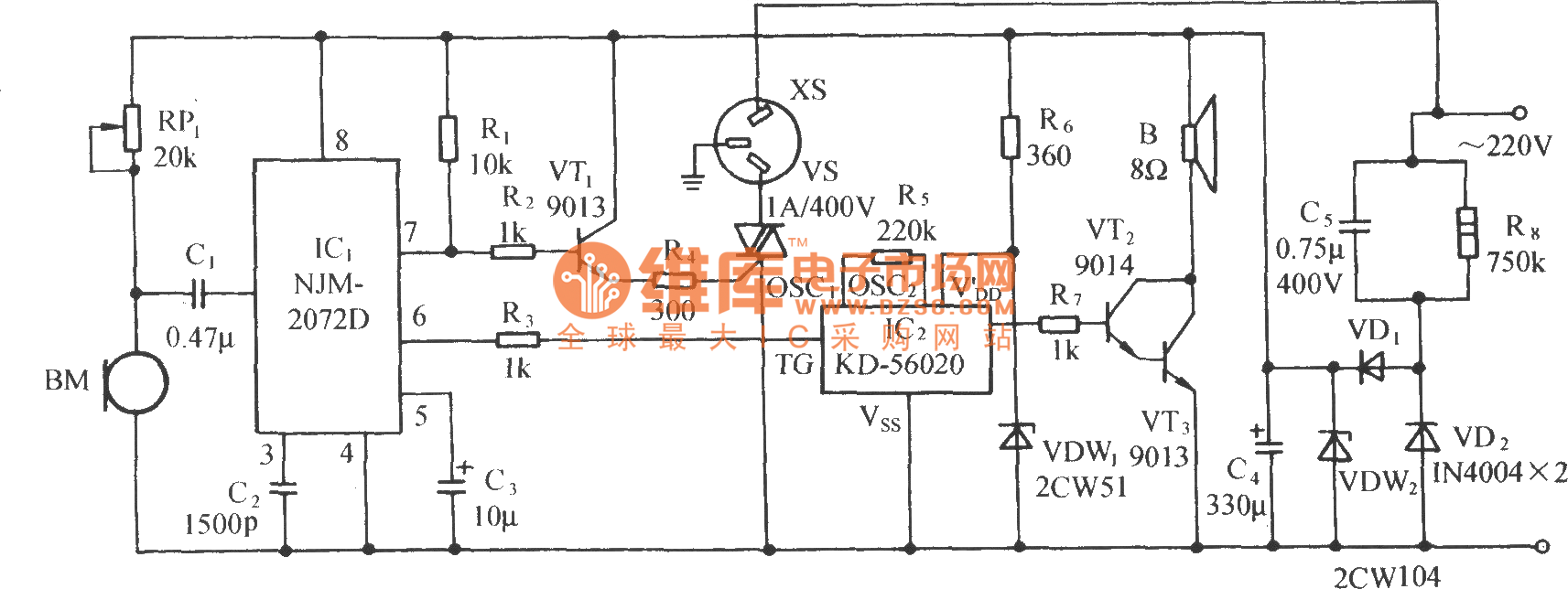

Asshown in the figure,the circuitusesvoice-activated ASICNJM2072D as the core component,butthe on-off ofoutletXS1 is controlled by TRIAC, and vocal circuit uses imitating animal soundIC KD- 56020 which is triggered bynegative level.
