Voltage Controlled Panner

Published:2013/4/18 2:02:00 Author:muriel | Keyword: Voltage Controlled , Panner | From:SeekIC

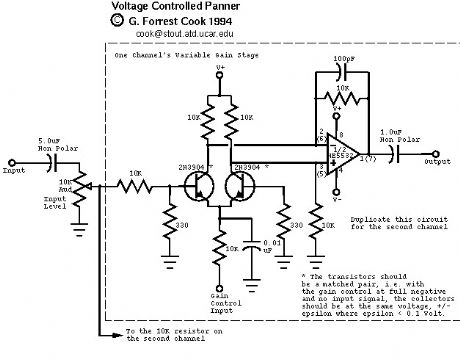

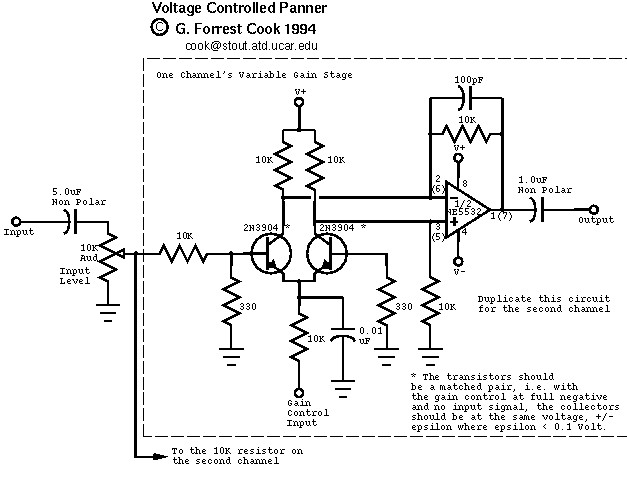

This circuit is used to convert a mono audio signal into a stereo signal that can be panned between the left and right channel by a 0-10V control signal, it is intended for analog synthesizer systems.
