Walkaround Control for The Basic Throttle

Published:2013/6/7 21:23:00 Author:muriel | Keyword: Walkaround Control , Basic Throttle | From:SeekIC

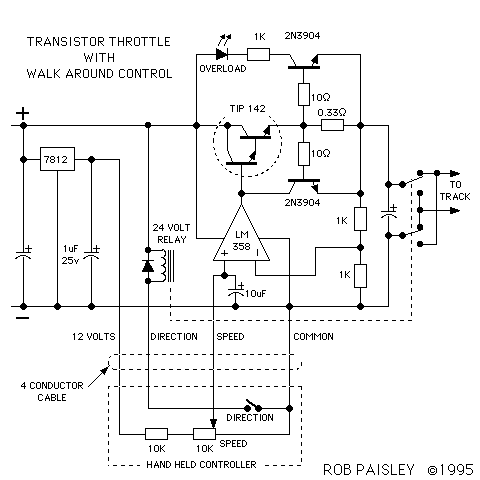

In the next circuit walk around control is added to the throttle. A 4 conductor, 22 Gauge stranded cable will allow the operator to move around with the 'Hand Held Controller' while the power section of the throttle remains at a fixed location. A DPDT 24 Volt DC relay and a toggle switch has been added for direction control. The direction switch, speed control potentiometer and a 10K ohm resistor are mounted in the Hand Held Controller.
