ZENER_GATED_SCR_PROTECTS_POWER_TRANSISTORS

Published:2009/7/21 10:49:00 Author:Jessie | From:SeekIC

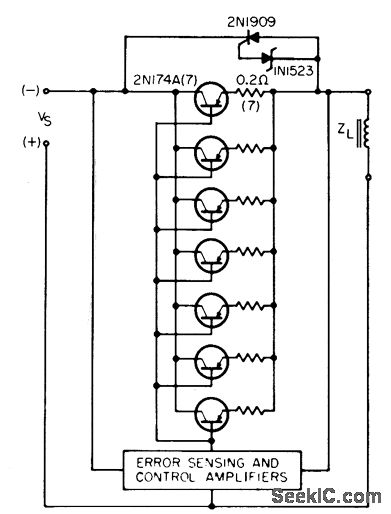

Scr serves as controllable short-circuit across power transistors. Reaction time is about 2 microsec.-C. A. Blanchard, Zener-Gated SCR Protection for Power Transistors, EEE, 14:5, p 117-118.
