lock control intelligent anti-theft with TX982 circuit

Published:2011/7/4 0:47:00 Author:John | From:SeekIC

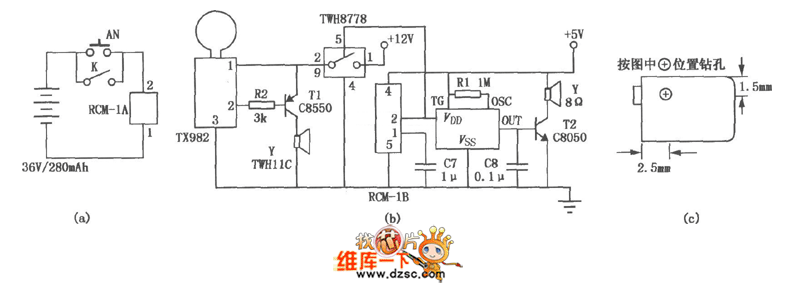

Lock control intelligent anti-theft with TX982 circuit is the lock intelligent alarm control unit designed for balcony’s anti-theft, just as shown in the figure. When the owner is out, the circuit automatically turns in to the alert state and the remote doorbell expires automatically. It isable to prevent the thief to sound out whether anyone at home through the bell If the thief climbed up the balcony for burglary, the circuit will immediately send an alarm up to 120dB sound rapidly. Therefore, the thief fears to escape quickly. Figure (a) shows a transmitter, which is installed at the gate. And figure (b) shows a receiving circuit, which is installed in the balcony’s ceiling.
