100_MODULAIION_OF_LIGHT_EMITTING_DIODE

Published:2009/7/22 1:10:00 Author:Jessie | From:SeekIC

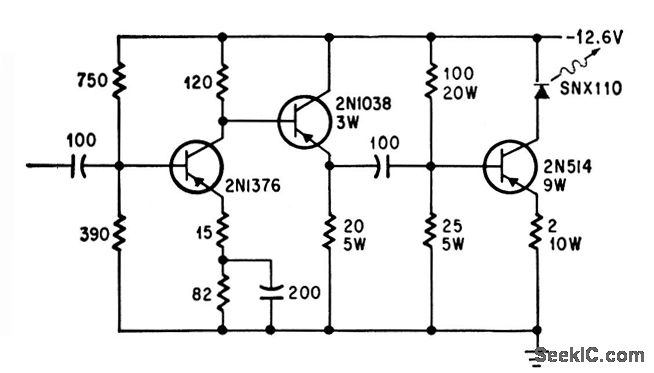

Inpt of 0.35 v rms at 1 kc gives 100% modulation. Useful operating range of circuit is 30 cps to 25 kc for light-beam communication.-E. t. Bonin, Drivers for Optical Diodes, Electronics, 37:22, p 77-82.
