100_W_25_KC_ULTRASONIC_GENERATOR

Published:2009/7/23 22:50:00 Author:Jessie | From:SeekIC

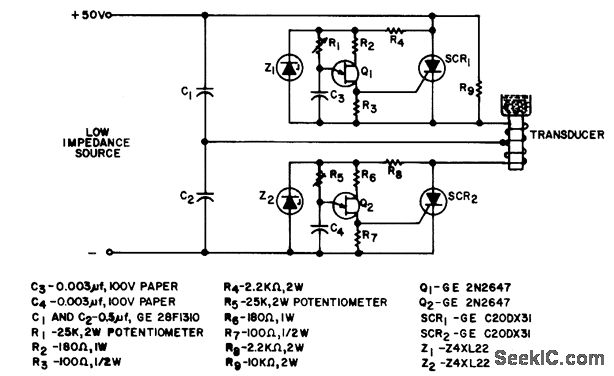

Frequency-doubling mode permits use of inexpensive scr's. Load resistance is in magnetostrictive transducer winding L. Circuit is actually 25-kc inverter triggered at 12.5-kc repetition rate.- Silicon Controlled Rectifier Manual, Third Edition, General Electric Co., 1964, p 16
