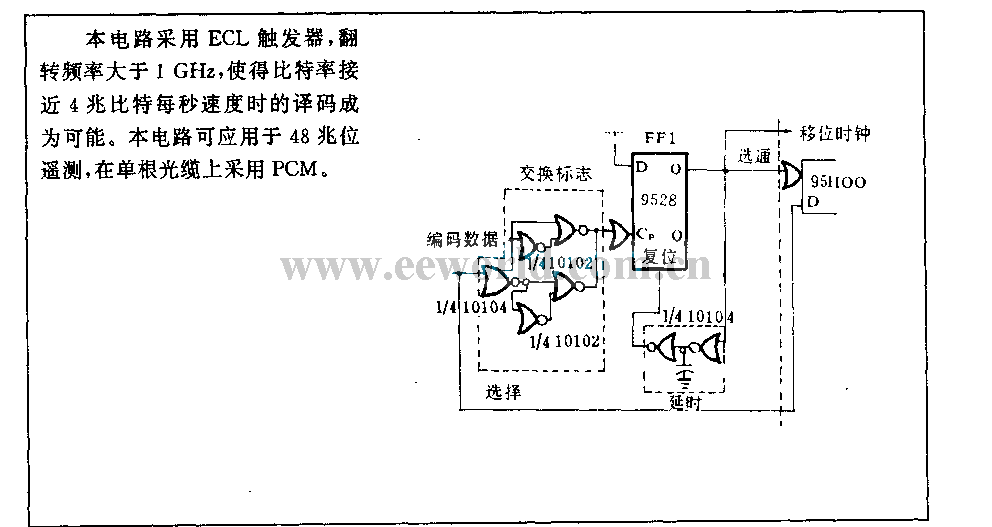

1GHZ manchester decode circuit

Published:2011/4/1 20:53:00 Author:may | Keyword: 1GHZ, manchester decode | From:SeekIC

This circuit use ECL trigger. Its toggle frequency is greater than 1GHz. And the trigger make decoding possible when bit rate close to 4 Mbits per second. This circuit can used in 48 Mbits telemetry and adopts PCM at simple root cable.
