1_of_15_cascaded_video_mux

Published:2009/7/22 22:53:00 Author:Jessie | From:SeekIC

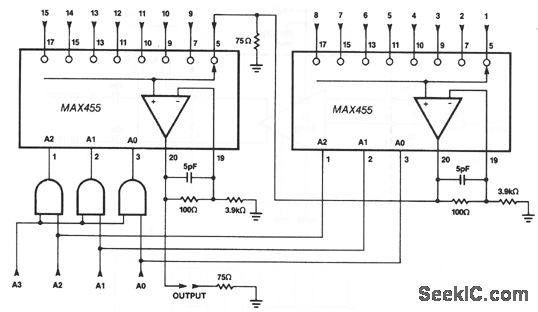

In this circuit, two MAX455s are cascaded to form a 1-of-15 video MUX by connecting the output of one MUX to one input of the input channels of a second MUX. Although the two devices are usually close to one another, the out-put of the first MUX should be terminated to preserve bandwidth.
