22_KC_SONAR_1

Published:2009/7/23 22:48:00 Author:Jessie | From:SeekIC

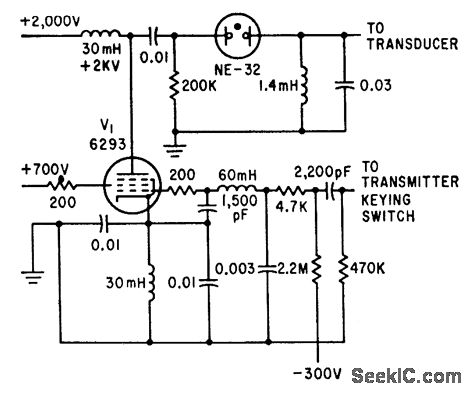

key pulse allows Clapp oscillator to operate for 1 millisec at 22 kc, with keying 25 times per second.-L. H. Dulberger, Sonar to Survey Arctic Ocean Shelf Transmits Through Ice and Water, Electronics, 34:31, p 44-45.
