A8777N--the multi-line electric switch shifting integrated circuit

Published:2011/6/8 7:30:00 Author:qqtang | Keyword: multi-line electric switch, integrated circuit | From:SeekIC

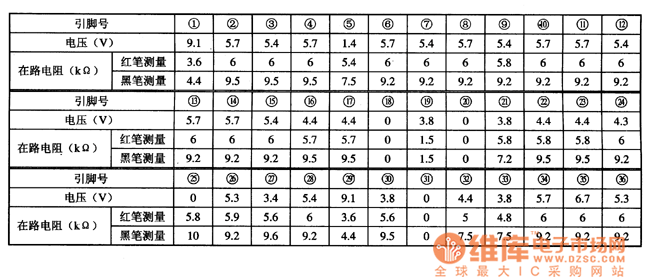

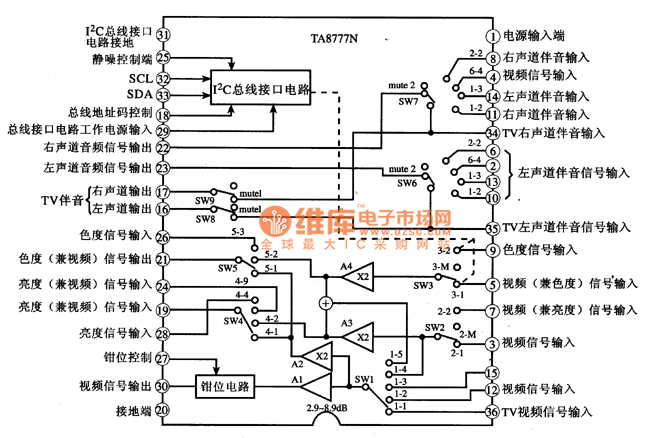

A8777N is a multi-line electric switch shifting integrated circuit, which is widely used in audio systems and video systems.1.functions featuresA8777N contains I2C general connector circuit, clamper circuit, multi-line electric circuit and other additional circuit. This circuit can shift all kinds of signals under the control of I2C general line signals.2.the internal circuit and pin functionsThe internal circuit and pin functions of A8777N are shown in figure 1.Figure1 The internal circuit and pin functions of A8777N
