AC Current Controls Hour Meter

Published:2012/9/5 20:36:00 Author:Ecco | Keyword: AC Current, Controls , Hour Meter | From:SeekIC

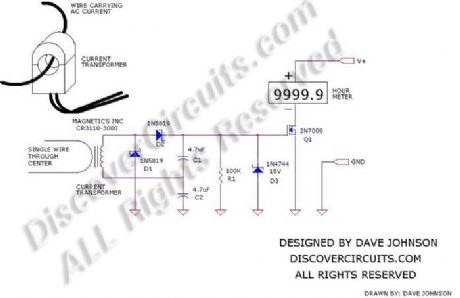

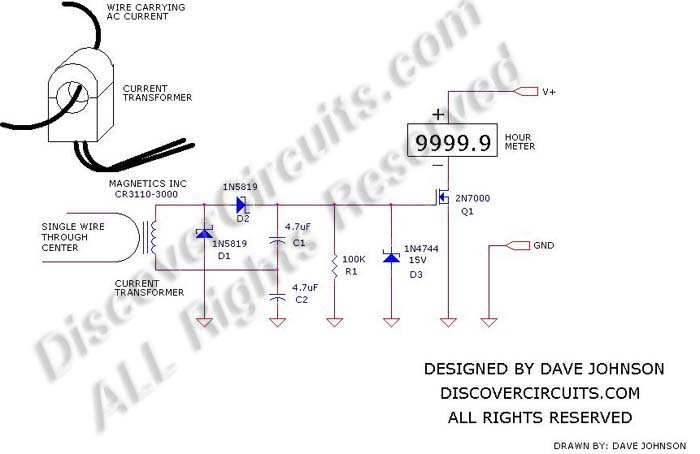

Many systems require routine maintenance based on machine operation time. The circuit below is a simple way to turn on a hour meter whenever AC power is supplied to the machine. An inexpensive snap-on current transformer from Magnetics Inc, is used to detect the AC current. Source: discovercircuits
