AIRBORNE_TV_SUNSPOT_CAMERA

Published:2009/7/19 23:57:00 Author:Jessie | From:SeekIC

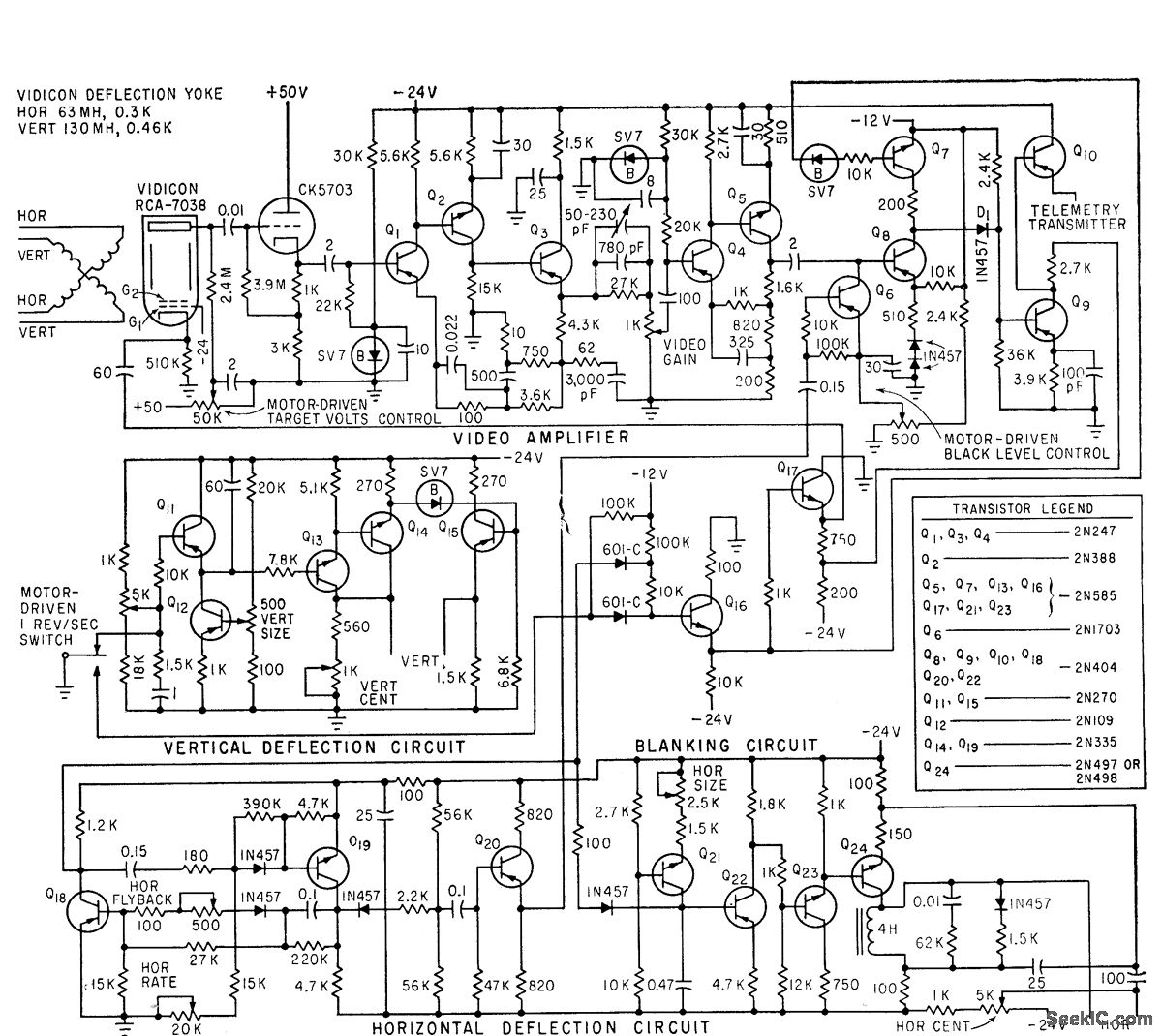

Used with slow-scan iv system for high-altitude solar photography from balloon. Uses 500cps horizontal scan without interlace for 500-line resolution, requiring 200-kc band. width. Video output of camera goes to 2-w commercial 225.7.Mc f-m telemetry transmitter exciting 10.w power stage.-L. E. Flory el al., Television System for Stratoscope I, Electronics, 33:25, p 49-53.
