AN6663S-the integrated drive circuit of zooming motors

Published:2011/5/19 6:28:00 Author:Borg | Keyword: drive circuit, zooming motors | From:SeekIC

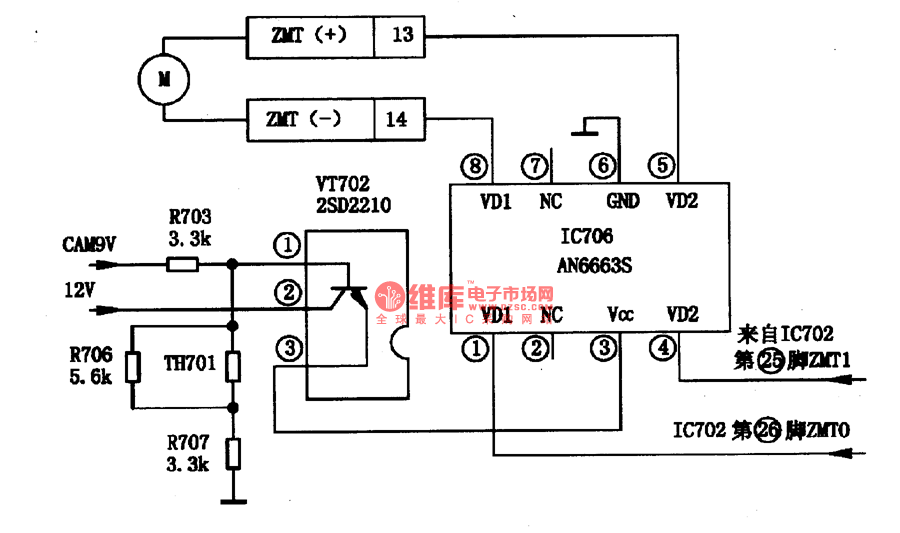

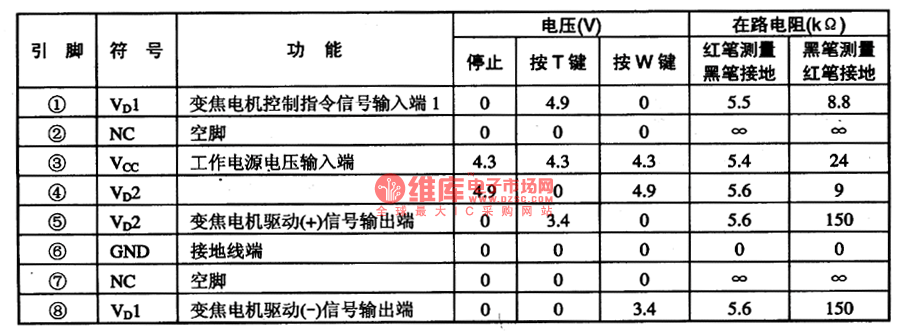

AN6663S is an integrated drive circuit of zooming motors produced by Panasonic, which is widely used in all kinds of NV camcorders of Panasonic.AN6663S is used in Panasonic NV一M9000 as the typical applicaiton circuit, see as Figure 1. The IC is in 8-lead dual in-line package, and its pin functions and data are listed in Table 1. Figure 1 the typical application circuit of AN66635 Table 1 pin functions and data of AN663S
