ARMATURE_TESTING_BRIDGE

Published:2009/7/22 22:55:00 Author:Jessie | From:SeekIC

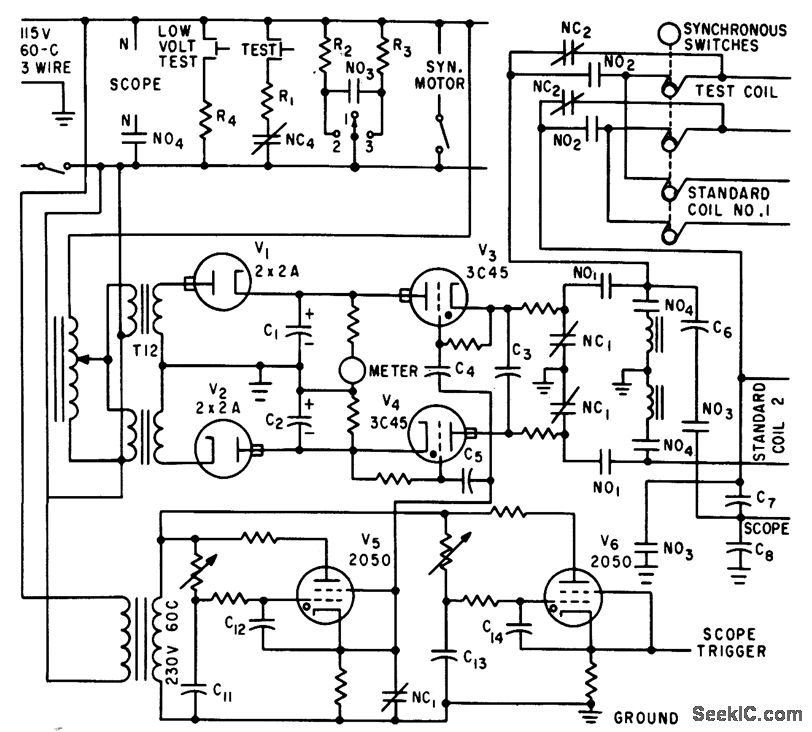

Identical current pulses are injected into perfect standard armature and production armature being tested. Transient response, displayed on cro, permits fault diagnosis and location. Choice of four operating modes provides operating flexibility.-H. R. Weed and S. K. Weed, Pulse Response Pinpoints Armature Foults, Electronics, 33:24, p 70-72.
