AUDIO_COMPRESSOR

Published:2009/7/2 4:35:00 Author:May | From:SeekIC

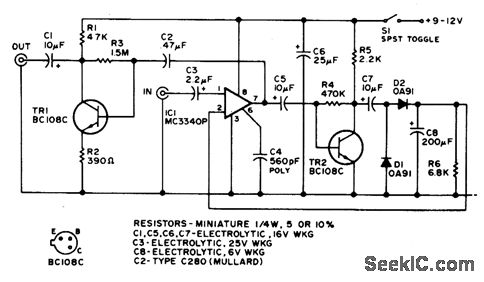

A MC3340P is used as a variable gain amplifier. The output of TR2 is rectified and controls the gain of IC1.
