AUTOMATIC_BLOOD

Published:2009/7/20 20:52:00 Author:Jessie | From:SeekIC

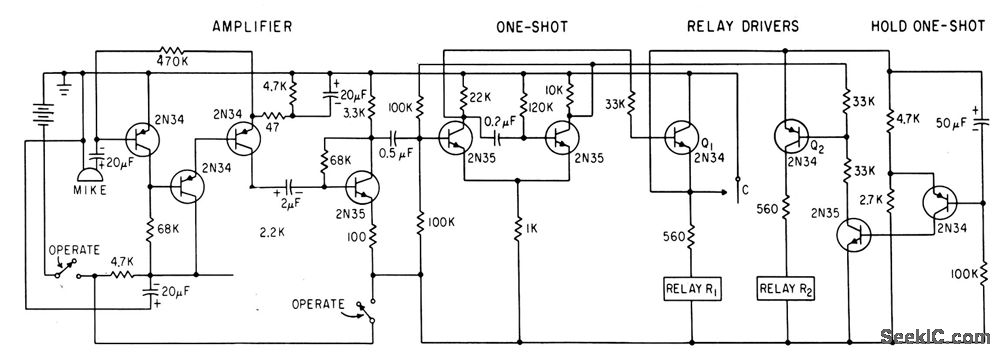

High-gail amplifier-microphone combination detects pulse beats and feeds them through shaper circuit to hold-relays that lock pressure gages at systolic and diastolic blood-pressure readings.-R. J. Roy and M. Weiss, Inexpensive Monitor Reads Blood Pressure Automatically, Electronics, 35:47, p 40-41.
