Automatic kitchen ventilator circuit

Published:2011/12/6 21:20:00 Author:Ecco | Keyword: Automatic kitchen ventilator | From:SeekIC

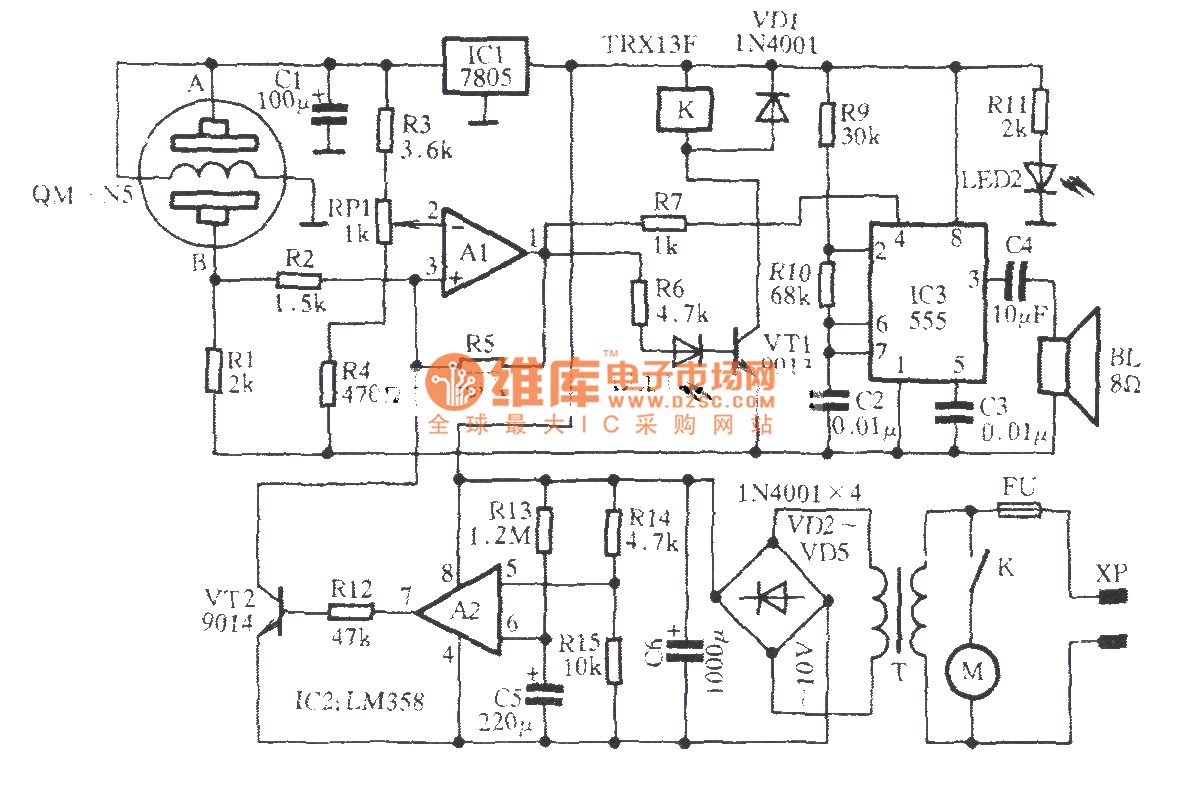

The circuit isshown in the chart, when thecooking smoke smells heavy,the hood starts automatically to emitsound and light alarm signals ; until the smoke concentration decreases , it will automatically cut off the power of hood M.
