BALANCED_MODULATOR_DEMODULATOR

Published:2009/7/22 1:14:00 Author:Jessie | From:SeekIC

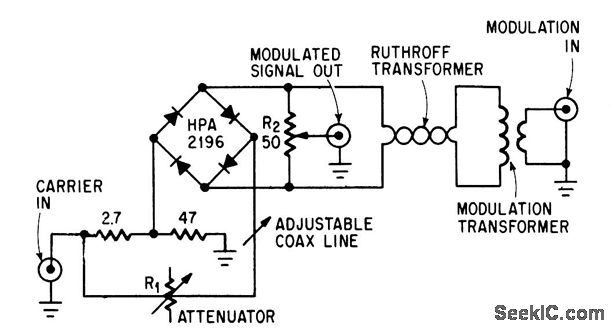

Achieves high carrier and modulation suppression by using closely matched diodes and providing R1 for amplitude adjustment and coaxial line for phase adjustment. R2 provides slight amplitude adjustment.-W. H.Ellis, Diode Quad Modulator Suppresses Carrier 65 Db, Electronics, 39:8, p 97.
