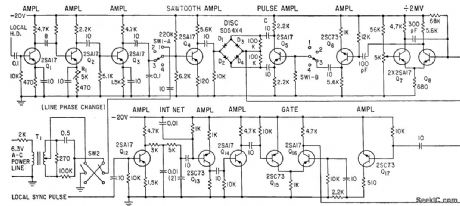

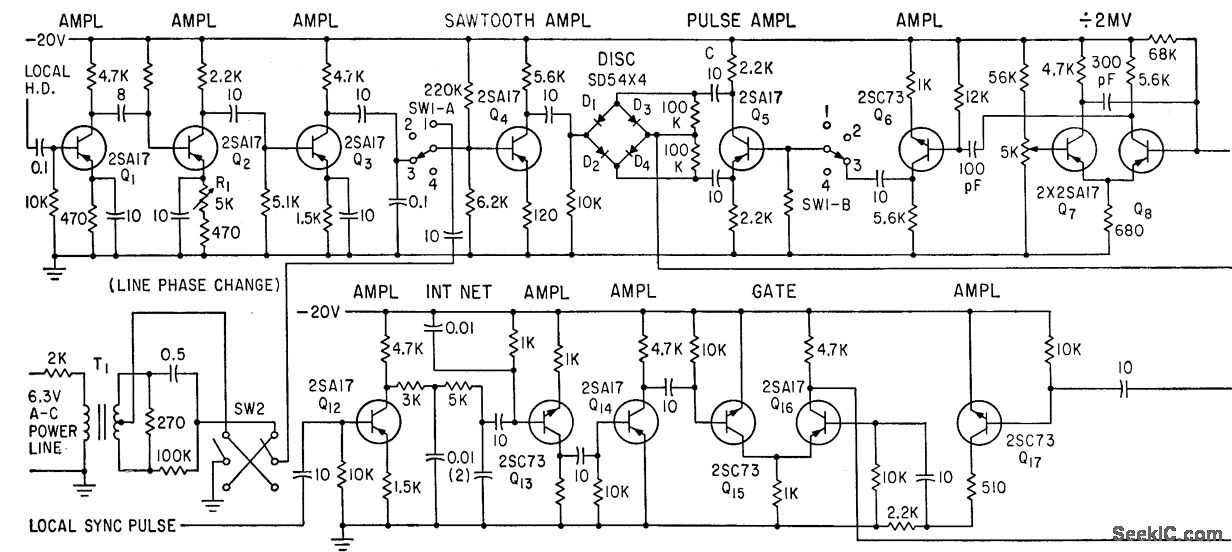

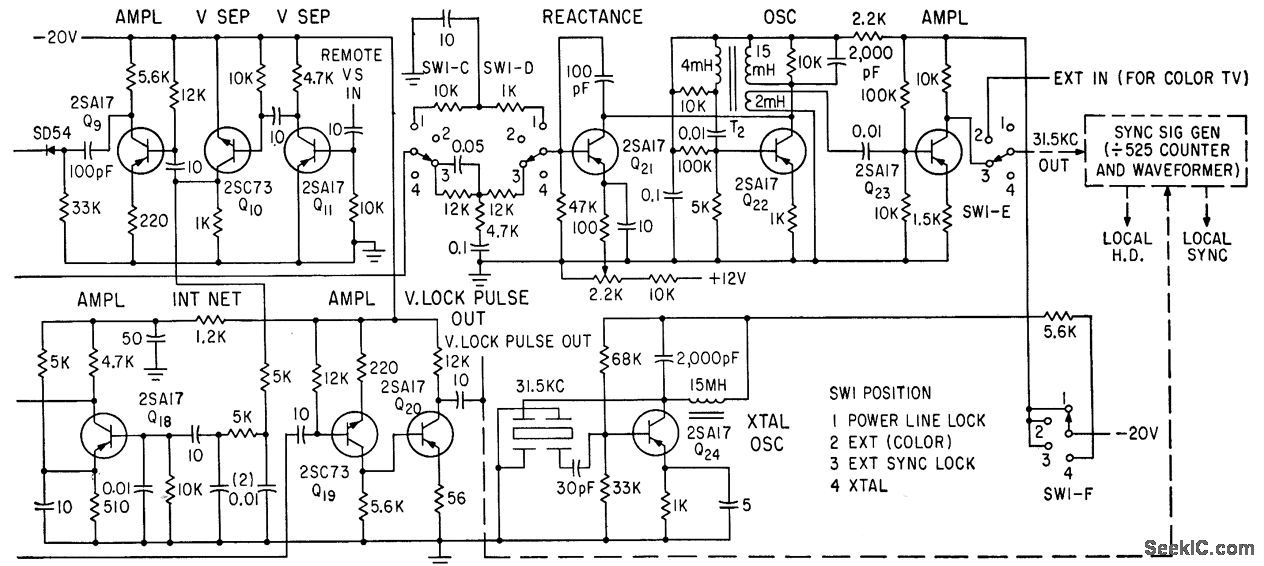

CAPACITIVE_TRANSISTOR_SYNC_LOCK

Published:2009/7/20 20:36:00 Author:Jessie | From:SeekIC

Provides stable sync lock of signal generator against noise interference on tv station relay lines.-Y. Fujimura and N. Mii, Automatic Frequency Control with Reactance Transistors, Electronics, 33:40, p 97-99.
