CCTV_10_MC_CARRIER_TRANSMITTER_TERMINAL

Published:2009/7/20 20:59:00 Author:Jessie | From:SeekIC

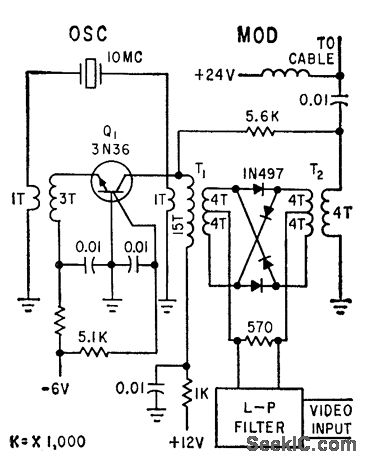

Uses single tetrode transistor in oscillator to feed four-diode balanced modulator. Peak level of modulator output is 4 db below 1 mw.-L. G. Schimpf, Carrier Transmission for Closed-Circuit Television, Electronics, 32:24, p 66-68.
