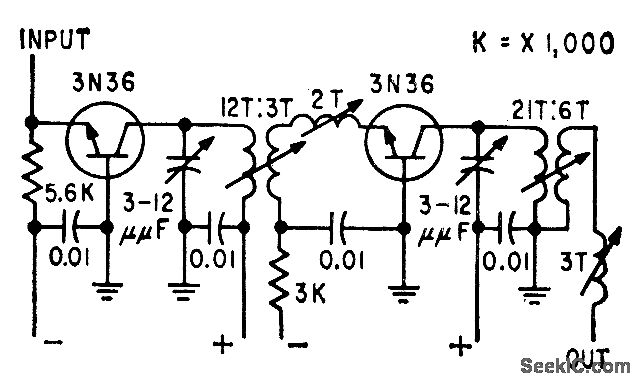

CCTV_10_MC_REPEATER

Published:2009/7/20 20:31:00 Author:Jessie | From:SeekIC

Has gain characteristics to match losses in 0.5 mile of coaxial cable. Mismatching is used at input and between stages to stabilize gain and cut if down to required 18 db at 15 Mc.-L. G. Schimpf, Carrier Transmission for Closed-Circuit Television, Electronics, 32:24, p 66-68.
