CLASSIC_OP_AMP_ASTABLE_MULTIVIBRATOR

Published:2009/7/7 1:00:00 Author:May | From:SeekIC

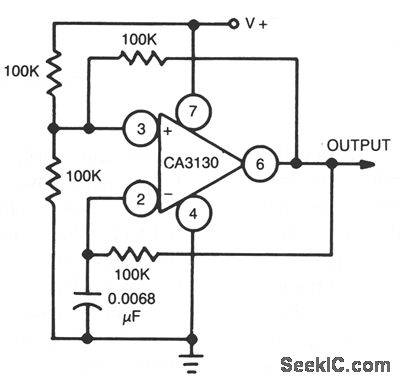

Uses CA3130 BiMOS op amp that operates at a frequency of 1 kHz. With rail-to-rail output swing, frequency is independent of supply voltage, device, and temperature. 0nly the temperature coefficient of RT and CT enters into circuit stability.
