CONSTANT_AMPLITUDE_FOR_THREE_RANGES

Published:2009/7/24 3:32:00 Author:Jessie | From:SeekIC

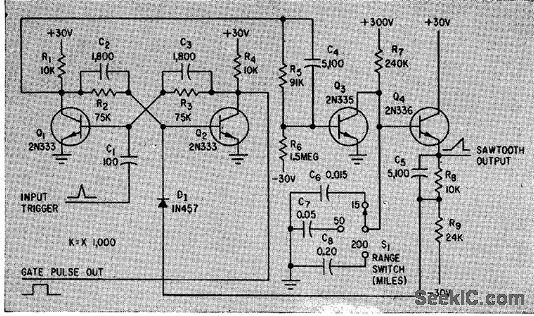

Multiple-range sweep generator for airborne radar provides constant-amplitude out put sawtooth, along with fast-rising gate pulse or pedestal having duration of saw tooth. linearity is kept within 1% without using bootstrap.-H. P. Brockman, Sweep Generator Design: How to Keep It Simple, Electronics, 33:3, p 92.
