CURRENT_MONITOR

Published:2009/6/25 3:31:00 Author:Jessie | From:SeekIC

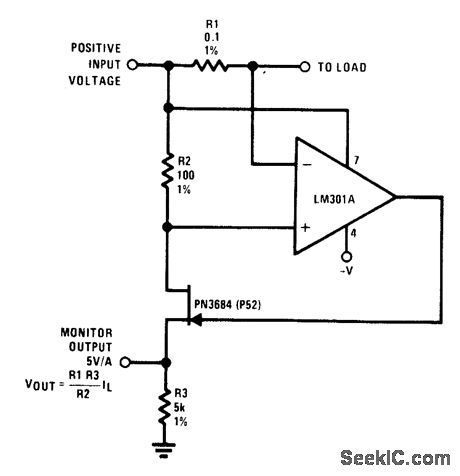

Circuit Notes R1 senses current flow of a power supply. The JFET is used as a buffer because ID = Is; therefore the output monitor voltage accu-rately reflects the power supply current flow.
