Chunhua XDL - 60 vertical cleaner circuit diagram

Published:2011/5/13 2:05:00 Author:Ecco | Keyword: Chunhua , vertical cleaner | From:SeekIC

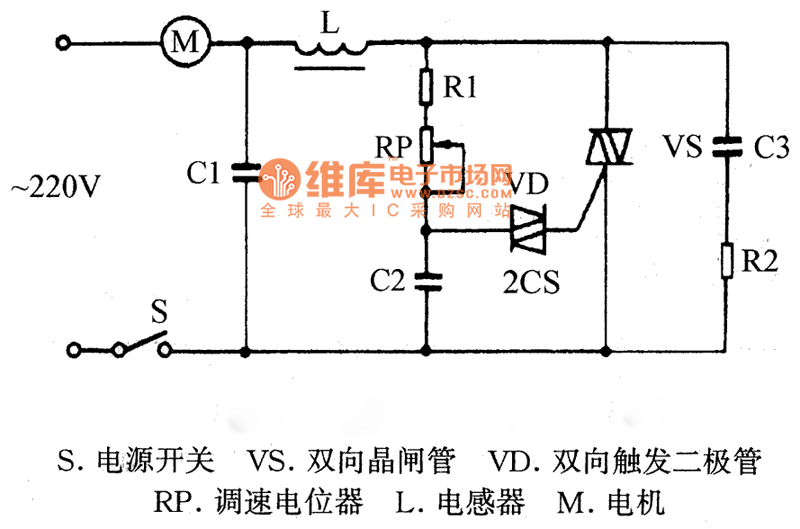

S-Power Switch, VS-Triac, VD-bidirectional trigger diode, RP-speed potentiometer, L-inductor, M-motor
