Complete_TV_video_IF_amplifier_and_detector_system

Published:2009/7/21 8:45:00 Author:Jessie | From:SeekIC

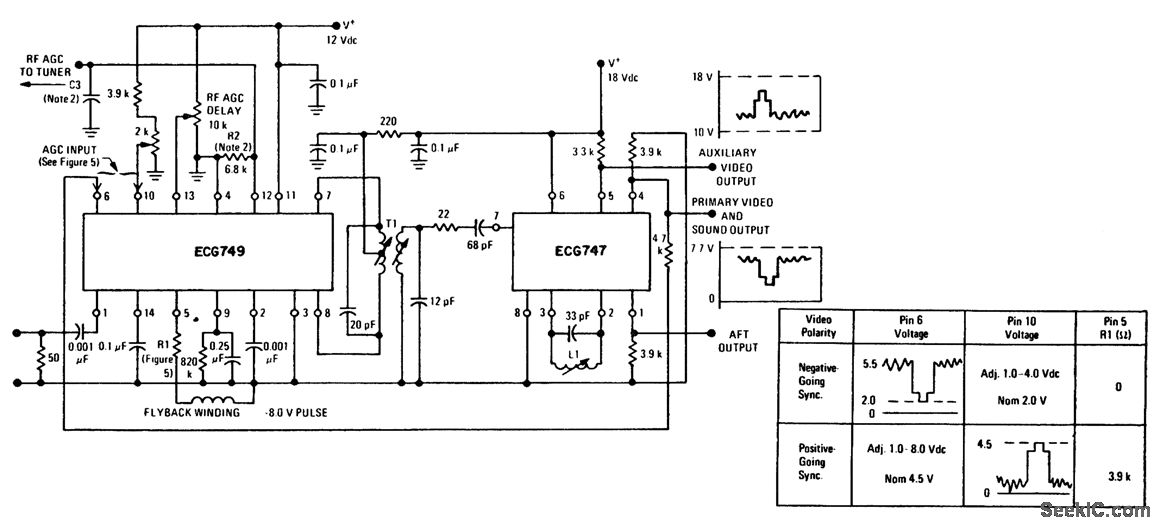

Complete TV video IF amplifier and detector system. The ECG749 contains two lF amplifiers, an AGC keyer, and an AGC amplifier; The circuit will work for both color and B&W. See table for AGC information (courtesy GTE Sylvania Incorporated).
