DARKNESS_MONITOR

Published:2009/6/22 22:45:00 Author:Jessie | From:SeekIC

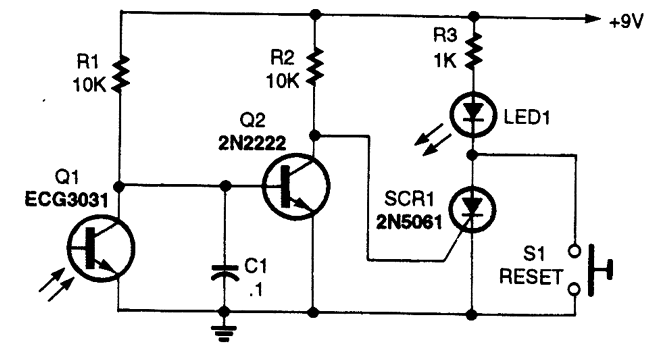

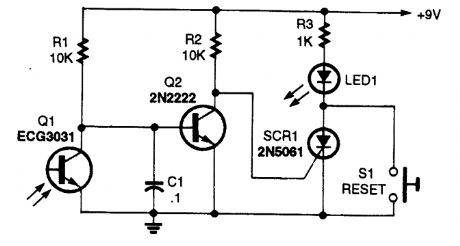

When light strikes detector Q1，Q2 is cut off，allowing bias to reach SCR1，triggering SCR1 and lighting LED1，S1 resets the circuit.
