DATA_RECORDING_CAMERA_TIMER

Published:2009/7/21 3:59:00 Author:Jessie | From:SeekIC

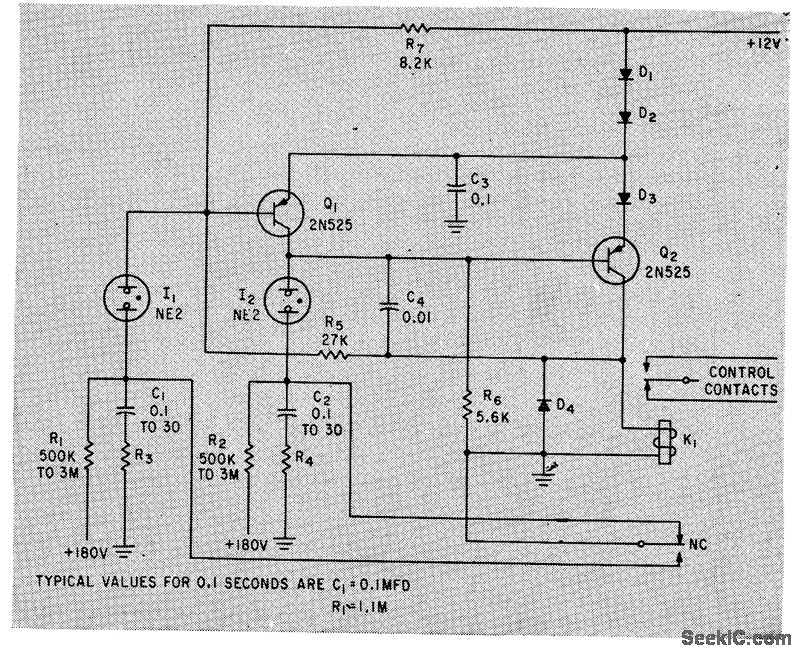

Controls exposure time and interval between exposures over ranges between 0.1 sec and 2 hours, independently of each other, by changing time constants with C1and C2.-J. G. Fullerton, Bistable Circuit Times Camera Exposures, Electronics, 34:45, p 91.
