DC Motor brush device circuit diagram

Published:2011/4/11 2:52:00 Author:may | Keyword: DC Motor brush device | From:SeekIC

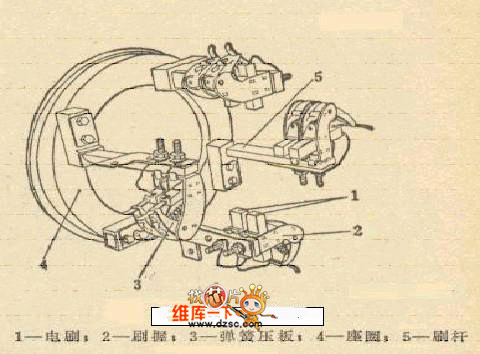

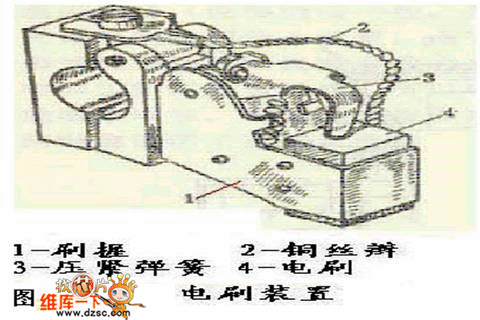

Graph: Role: to introduce and educe DC voltage and DC current from the circuit Graph: composed by brush bar, brush yoke and copper wire plait
