DC motor armature winding circuit diagram

Published:2011/4/14 5:56:00 Author:may | Keyword: Motor armature winding | From:SeekIC

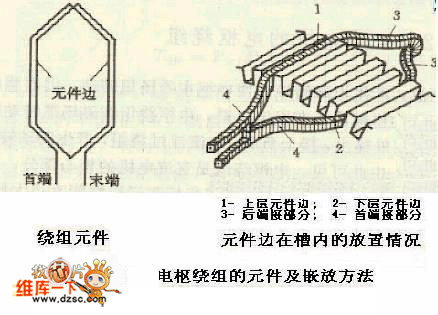

The main circuit of DC motor is composed of many coils linked according to certain rules, components and embedding and placing method. To achieve the electromechanical energy conversion, electromotive force are produced by current and induction. diagram: DC motor armature winding circuit diagram
