EEG_TELEMETER

Published:2009/7/20 21:01:00 Author:Jessie | From:SeekIC

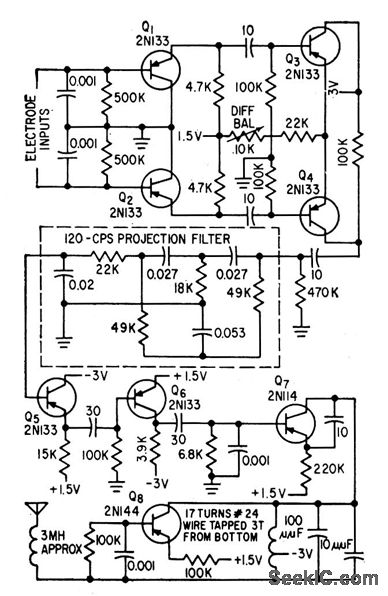

Amplifier, modulator, and oscillator produce 37.7-Mc signals frequency-modulated by scalp voltages of epileptics. Radiated signal may be picked up by antenna of receiver at distances up to 40 feet from patient in observation room.-C. L. Yeager and J. Henderson, Jr., Unit Telemeters Scalp Voltages, Electronics, 31:29, p 86.
