ELECTRONIC_KEYER

Published:2009/6/23 1:40:00 Author:Jessie | From:SeekIC

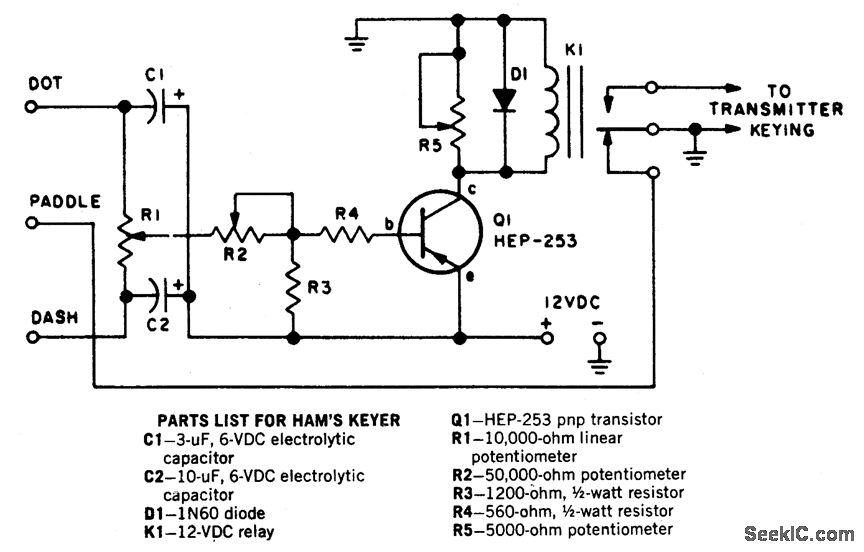

This circuit automatically produces Morse code dots and dashes set by time constants involving C1 and C2. R1 sets dot/dash ratio and R2 sets the speed. R5 sets the relay drop-out point.
