ELECTRONIC_SCALE

Published:2009/6/17 4:05:00 Author:May | From:SeekIC

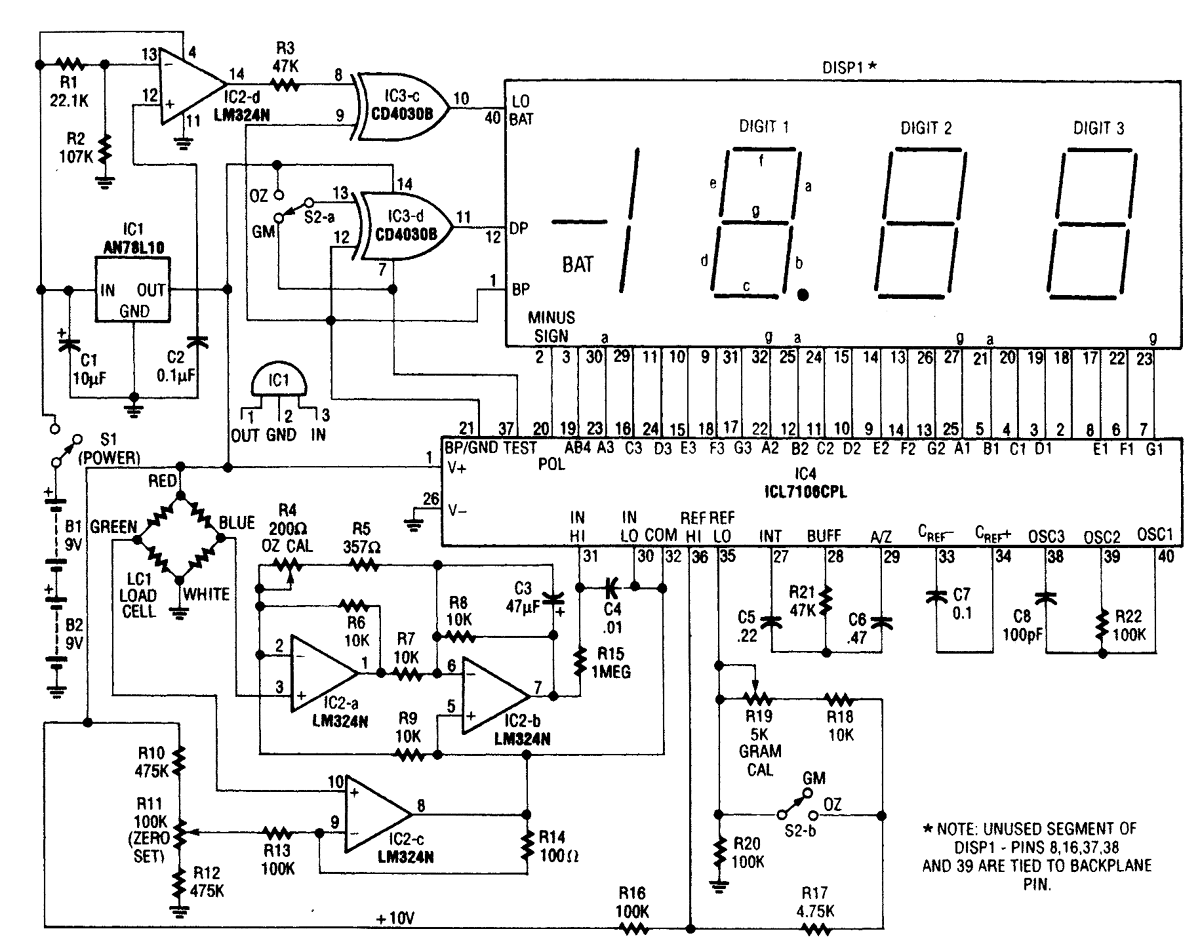

An electronic scale using a pressure transducer Goad cell) and an analog-digital (A/D) converter to drive a digital display is shown. The scale range depends on load cell. Display is calibrated in appropriate units. Components are on main circuit and display boards. The off-board controls are on the front panel and case. The cell in this scale is rated for 1.3 pounds (600 grams).
