ESSURE_SENSITIVE_RESISTOR_CONTROLSARTIFICIAL_HAND

Published:2009/7/20 21:00:00 Author:Jessie | From:SeekIC

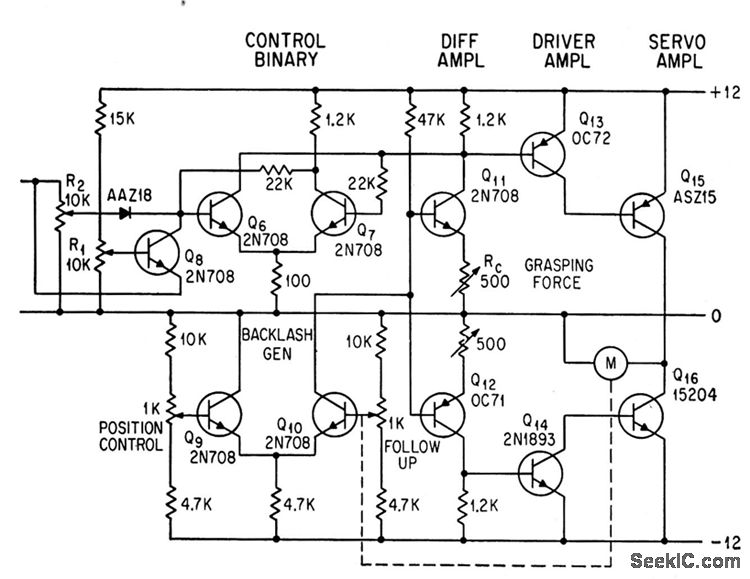

Control binary Q6-07 is triggered on through diode AAZ18 and reset by Q8 whose conduction threshold is determined by R1. Settings of R1, R2, and RC control closing of artificial hand and strength of grip. Servo amplifier drives motor in hand and follow-up potentiometer.-G. W.Horn, Muscle Voltage Moves Artificial Hand, Electronics, 36:41, p 34-36.
