Eggs automatic incubator 1

Published:2011/8/8 22:15:00 Author:Ecco | Keyword: Eggs automatic incubator | From:SeekIC

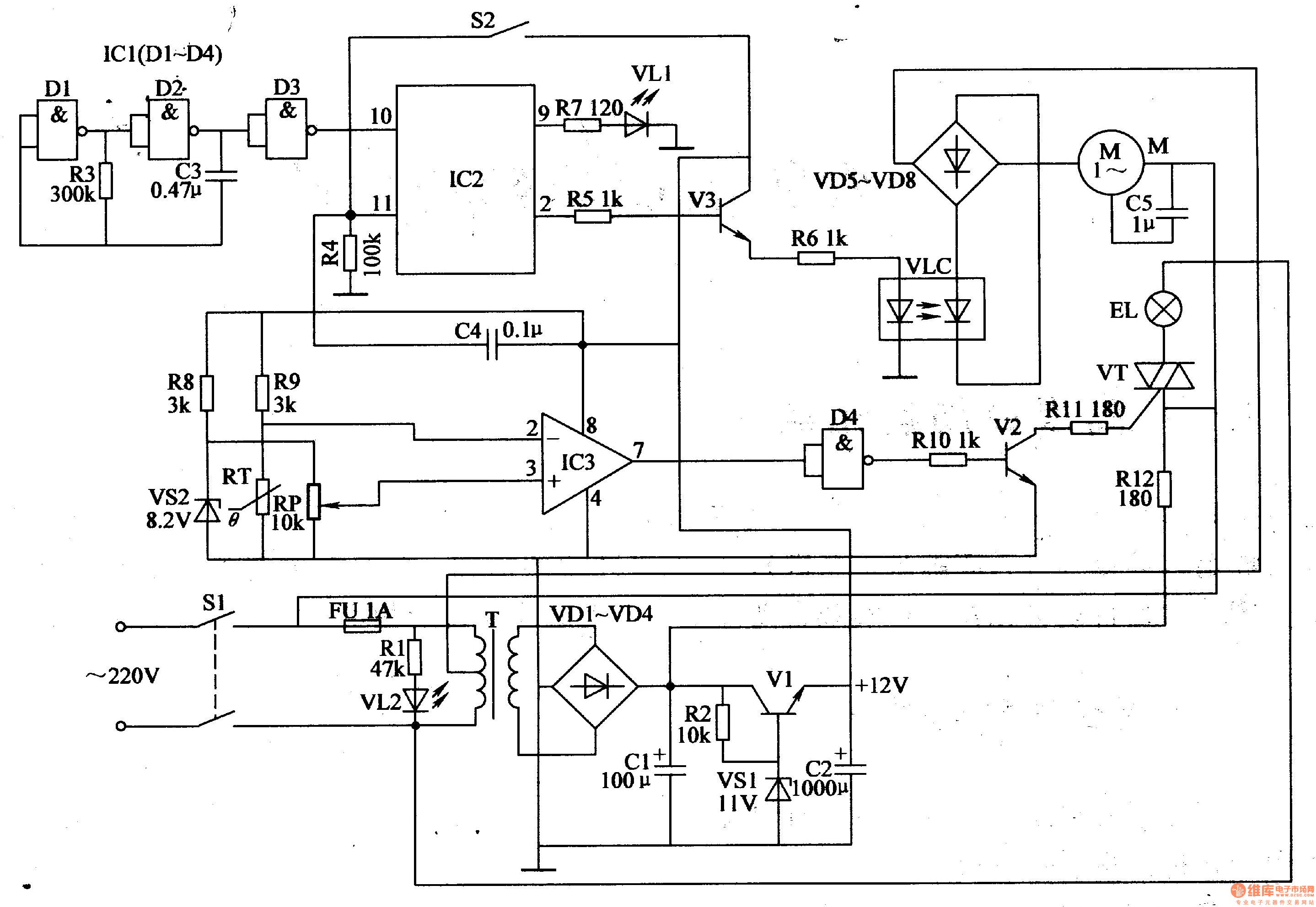

The eggs automatic incubator circuit is composed of the power supply circuit, automatic egg turning control circuit and temperature control circuit and other components, and it is shown in Figure 4-1. Power supply circuit is composed of the power switch Sl, fuse FU, power transformer T, rectifier diodes VDl-VD4, filter capacitors Cl, C2, resistors Rl, R2, power indicator LED VL2, voltage regulator VSl and power regulator diode VI. Rl-Rll select the 1/4W carbon film resistors or metal film resistors; Rl2 select the lW metal film resistor.
