Electronic stuttering appliance circuit

Published:2011/11/9 21:45:00 Author:May | Keyword: Electronic stuttering appliance | From:SeekIC

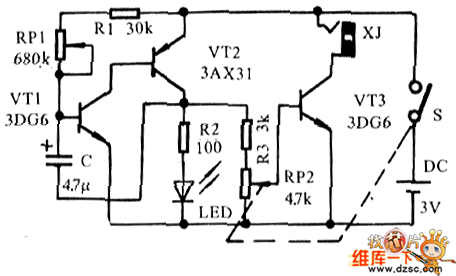

Electronic stuttering appliancecircuit is shown in the diagram, in fact, itis an electronic sound light metronome, and it utilizes rhythmed sound and light to stabilize emotion, and people will speak along with voice light rhythm to make them speak smooth gradually toreach the purpose to cure stammer. In order to easier making, this text uses cheap components. The triodes'β value in the principle circuit only needs to higher than 20. RP1 uses small type potentiometer with reading dial, RP2 uses theradio with switch volume potentiometer. Speaker's output connects toearphone, andthe complete appliance ispackaged in small box, and LED needs a pore to show it.
