FAST_800_V_SWEEP

Published:2009/7/24 3:38:00 Author:Jessie | From:SeekIC

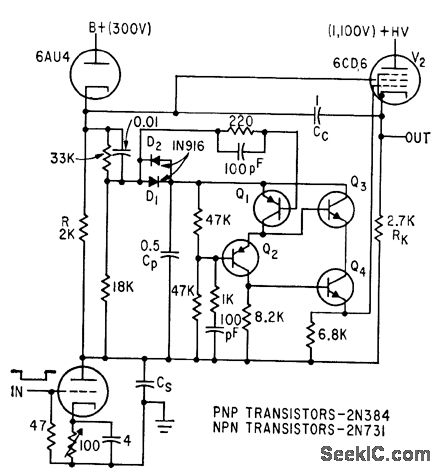

Hybrid bootstrap or arangement with transistors in cascade generates 800-V sweeps in either polarity with 0.15 microsec duration.-F. Q. Creed, Hybrid Bootstrap Circuits Increase Sweep Linearity, Electronics, 34:31, p 46-48.
