Four-phase stepper motor step signal circuit

Published:2011/3/22 3:24:00 Author:may | Keyword: stepper motor | From:SeekIC

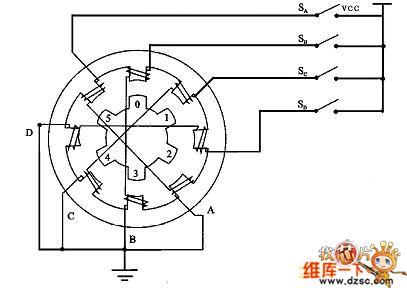

diagram: Four-phase stepper motor step signal circuit This stepper motor is four-phase stepper motor, use unipolarity DC source supply. Only breakover to stepper motor through each phase by a suitable timing, can rotate it. Diagram 1 is this four-phase stepper motor reaction working principle sketch.
