HEARTBEAT_TRANSMI_TIER

Published:2009/7/17 4:42:00 Author:Jessie | From:SeekIC

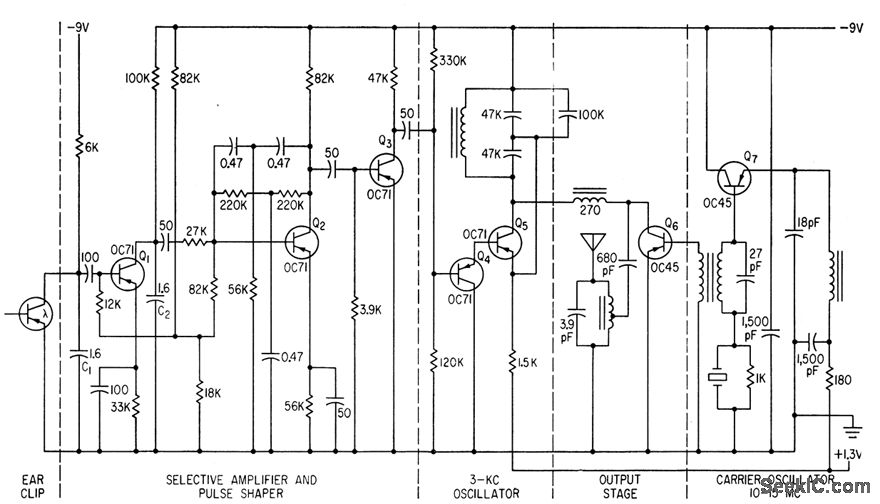

Self-contained device worn by patient transmits his pulse to radio receiver for remote monitoring or recording. Photo-transistor, fed separately, measures changes in light transmitted through earlobe as heart pulses change blood density and volume of lobe.-G. A. Horton and A K.Koroncai, Radio Transmitter for Remote Heartbeat Measurements, Electronics, 33:52, p 54-55.
