HR6184 Philips cleaner circuit diagram

Published:2011/5/9 4:06:00 Author:Ecco | Keyword: Philips , cleaner | From:SeekIC

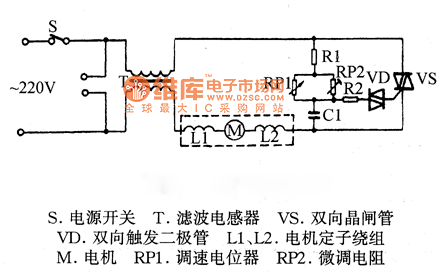

HR6184 Philips cleaner circuit diagram is shown as the chart. S-power switch, T-filter inductor, VS-Triac, VD-bidirectional trigger diode, L1, L2-motor stator windings, M-motor, RP1-speed potentiometer, RP2-tuning resistor.
