HR65 series of Philips cleaner circuit diagram

Published:2011/5/9 4:12:00 Author:Ecco | Keyword: Philips , cleaner | From:SeekIC

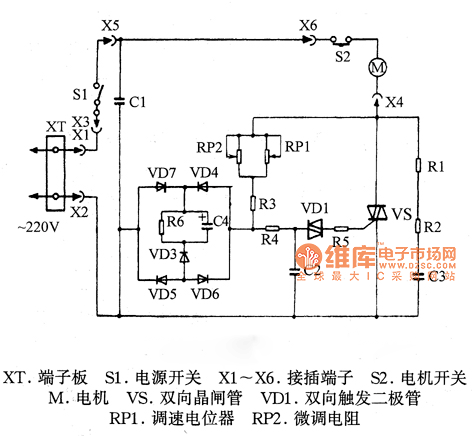

HR65 series of Philips cleaner circuit diagram is shown as the chart. XT-terminal board, X1 ~ X6 -plug terminals, S2-motor switch, S1-power switch, M-motor, VS-Triac, VD1-bidirectional trigger diode, RP1-speed potentiometer, RP2-tuning resistor
