HYDROGEN_THYRATRON_INDUCTION_HEATER

Published:2009/7/14 3:32:00 Author:May | From:SeekIC

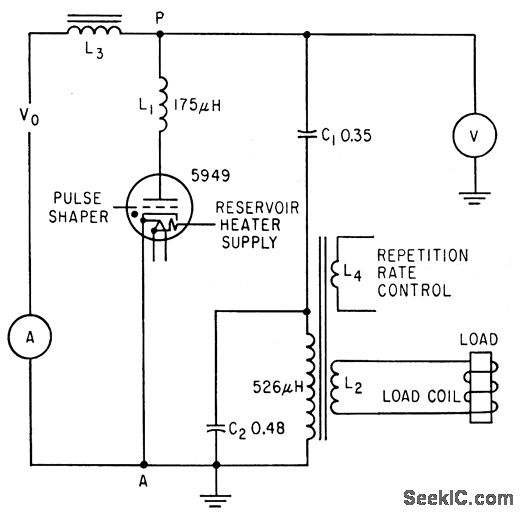

Thyratron acts as high-speed switch, much like spark-gap oscillator, to produce damped oscillations in tank circuit L2-C2.Output frequency is 10 to 14 kc, depending on load. Peak thyratron current is about 340 amp when Vo is 10 kv. Repetition rate depends on maximum average current, and is 124 cps for 0.5 amp. L3 is 0.32 h.-H. L. Van Der Horst, How Radar Techniques Improve Induction Heating, Electronics, 32:7, p 51-55.
